Paraguard Drain and Metal Roof Perimeter Components

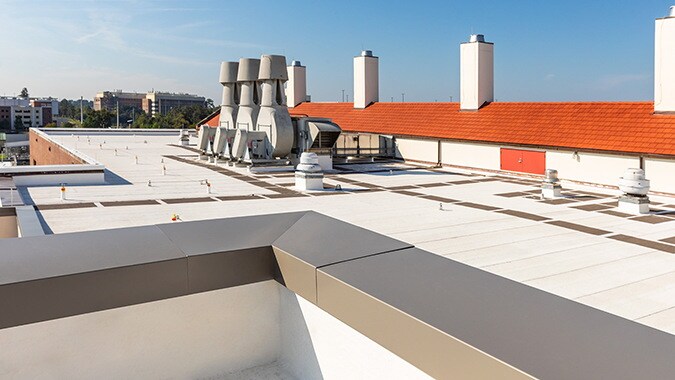

Paraguard Roof Perimeter Masthead

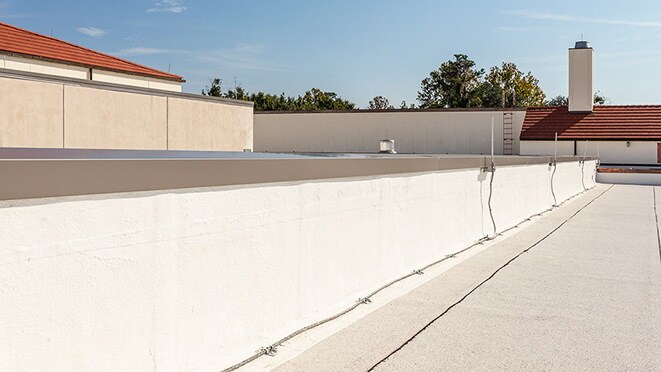

Paraguard Roof Perimeter Accessories 1

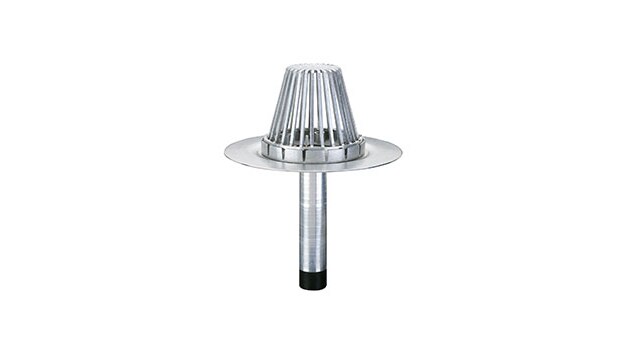

Paraguard Drain 2

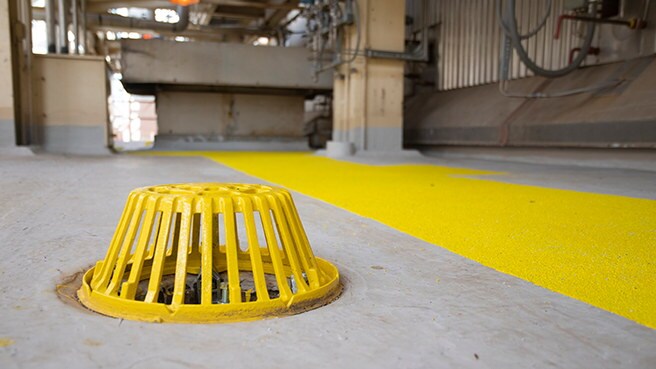

Paraguard Drain 3

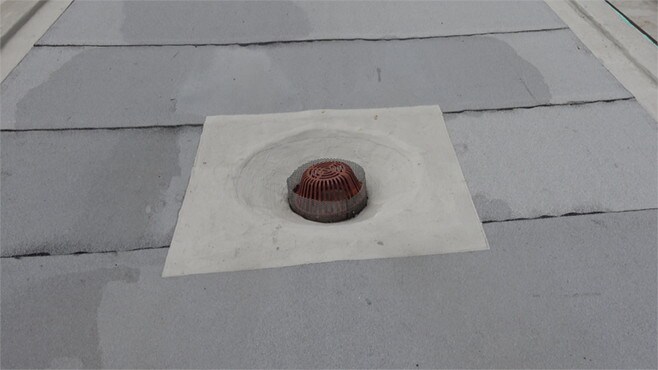

Paraguard Drain 4

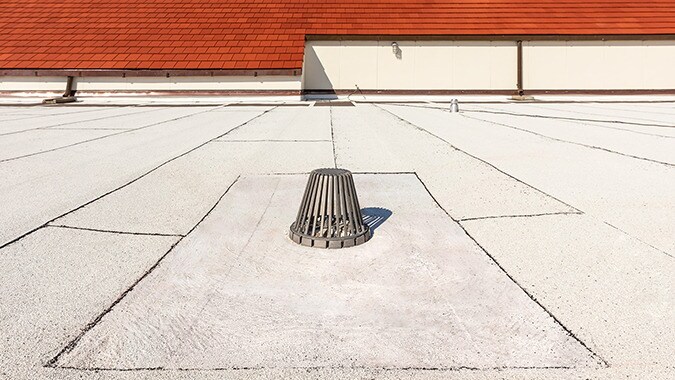

Paraguard Drain Masthead

The multi-component Paraguard System is designed for easy installation and maximum weather-tight construction. The Paraguard Drain is intended for roof drain retrofit applications and are composed of a one-piece, seamless, spun aluminum body, preventing separation of flange from stem. The roof perimeter components feature a galvanized steel waterdam/cant that can be installed at the start of a Siplast membrane application to allow phased construction between layers of the roof system. The fascia component is installed once the roofing is completed, allowing for continuous weather-proof installation. Paraguard Coping has a galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard Color Selector

Paraguard Drain

Intended for roof drain retrofit applications and composed of a one-piece spun aluminum body, a cast-aluminum strainer dome, and a patented seal located at the bottom of the drain stem. Intended for use in conjunction with the Parapro 123 Flashing System.

  • Unit

    Box

Paraguard Cantilever Coping

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard Expansion Joint Roof-to-Roof

Galvanized steel traveler cleat system designed and fabricated to allow building (tensile and shear) movement beneath the metal cap cover.

Paraguard Expansion Joint Roof-to-Wall

Galvanized steel traveler cleat system designed and fabricated to allow building (tensile and shear) movement beneath the metal cap cover.

Paraguard L Coping Existing Slope

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard L Coping Tapered

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard M Raised Edge

Galvanized steel waterdam/cant that can be installed at the start of a Siplast membrane application, allowing phased construction between layers of the roof system. The fascia component is installed after the roofing is completed, helping to facilitate continuous weather-tight installation.

Paraguard M Continuous Cleat Coping

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard M Coping Existing Slope

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard M Coping Tapered

Galvanized steel anchor cleat plate with pre-punched holes for correct fastener placement and a specially designed guttered splice plate for smoother finish lines.

Paraguard Extender No Offset

Paraguard Extender With Offset

Paraguard Extruded Edge AT Fascia Extended

Paraguard Extruded Edge AT Fascia Standard

Paraguard Extruded Edge AT HG Fascia

Paraguard Fascia Extender Flush Face Design

Proform M Gravel Stop 6 to 10 inch

Proform M Gravel Stop up to 6 inch
